当前位置:产品中心 / 固定升降平台 / SJT导轨式液压升降平台

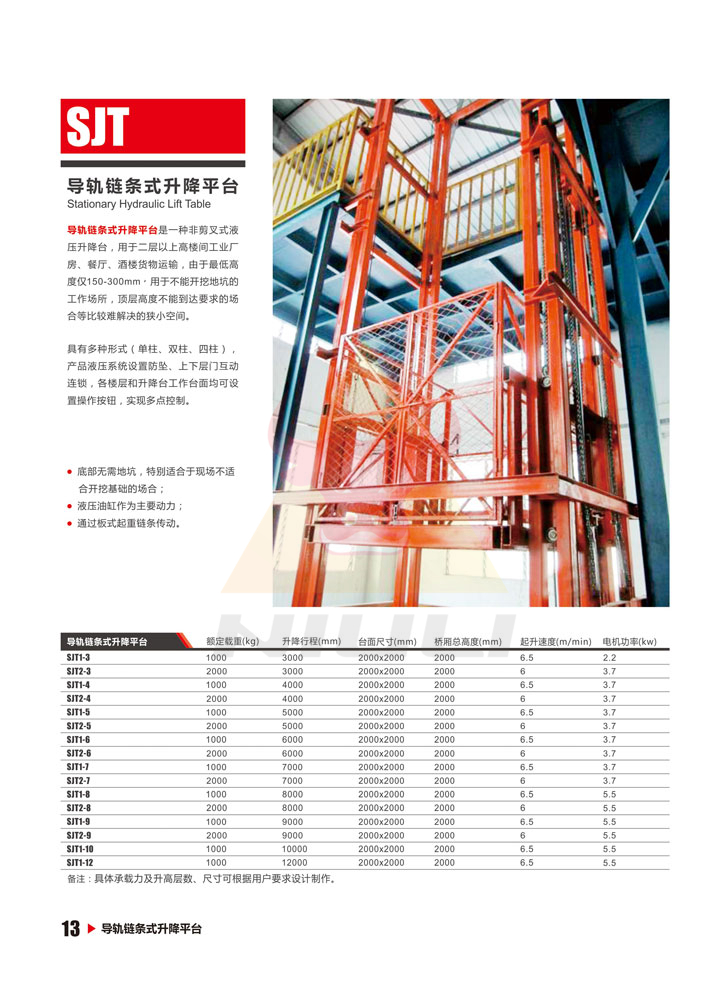

SJT导轨式液压升降平台

源头供货,欢迎到厂参观,免费提供报价!

导轨式升降机是用于货物升降的械设备,采用液压油缸作为主要动力,通过重型链条和钢丝绳传动,保证机器运行的绝对安全。无需地坑和机房,特别适合于有地下室、仓库改造、新建货架等,具有安装维修方便、美观、安全、操作方便。

  • ● 只需要挖十几厘米的地坑,方便设备安装和使用;

  • ● 液压油缸、特种重型链条、钢丝绳、多重保护,保证设备运行和使用;

  • ● 可以无需地坑,直接采用斜坡处理。

Niu Li
产品参数
产品型号额定载重(kg)升降行程(mm)台面尺寸(mm)桥厢总高度(mm)起升速度(m/min)电机功率(kw)
SJT1-3100030002000×200020006.52.2
SJT2-3200030002000×2000200063.7
SJT1-4100040002000×200020006.53.7
SJT2-4200040002000×2000200063.7
SJT1-5100050002000×200020006.53.7
SJT2-5200050002000×2000200063.7
SJT1-6100060002000×200020006.53.7
SJT2-6200060002000×2000200063.7
SJT1-7100070002000×200020006.53.7
SJT2-7200070002000×2000200063.7
SJT1-8100080002000×200020006.55.5
SJT2-8200080002000×2000200065.5
SJT1-9100090002000×200020006.55.5
SJT2-9200090002000×2000200065.5
SJT1-101000100002000×200020006.55.5
SJT1-121000120002000×200020006.55.5
Niu Li
产品详情
